Features:

1. Upper & lower vacuum forming
2. Mould vibration
3. Automatic turn back mould
4. Dynamoelectric adjusting upper & lower mould holder
5. Dynamoelectric adjusting the upper pressing gate
6. Upper & lower heating furnace
7. USA 6061 aluminum mould holder
8. Stainless steel furnace case
9. Electric heating furnace: Horizontal backward design
10.Servo-motor pulling film design
11.Sensor provided
12.Die cutting function
13.Use PLC temperature control*

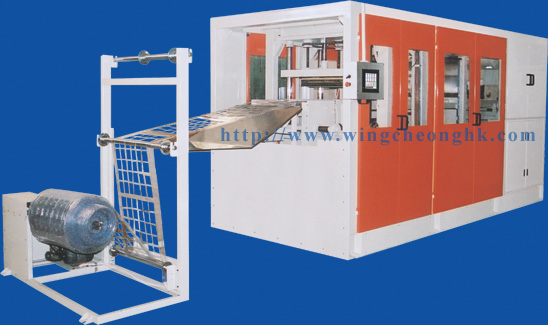

Model No. : T228-C61

Thermoplastic Material: PVC, PP, PS, HIPS, APET, PETG, EVA
Material Thickness: 0.2 ~ 1mm
Forming Length: 610mm
Forming Width: 460mm ~ 762mm
Forming Height: Approx. 200mm
Production Speed (Per hour):220 ~ 1,000 Times
Electric Consumption of Heating Furnace: 24 KW
Electric Consumption of Motor: 5.5 KW
Vacuum Pump (Motor): 3KW / 4HP
Electric Consumption: 30 KW
Cutting area: L765 mm X W610 mm
Working Height: 400 mm
Power Supply: 380VAC 3 Phase / 50 Hz
Machine Dimensions: L8,200mm x W2,430mm x H3,150mm
Weight: Approx.: Approx. 8,000 Kg

(*Optional services)
