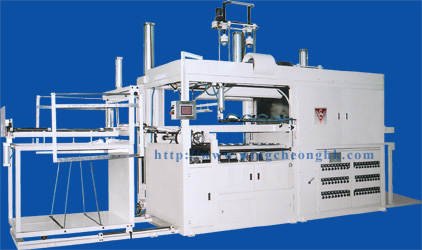

Automatic High Speed Vacuum Forming Machine




1. Mould vibration
2. Automatic turn back mould
3. Dynamoelectric adjusting the upper mould
4. Dynamoelectric adjusting the upper pressing gate
5. Stainless steel furnace case
6. 54 sets individual temperature control
7. USA 6061 aluminum mould holder
8. Electiric heating furnace: upward or downward design
9. Vertical pulling film design (*Servo-motor)
10.Sensor provided
11.PLC controller is easily being update function

Model No. : T222-1A

Thermoplastic Material: PVC, PP, PS, HIPS, APET, PETG, EVA
Material Thickness: 0.2 ~ 1.2mm
Forming Length: 250mm ~ 1,118mm
Forming Width: 460mm ~ 660mm
Forming Height: Approx. 177mm
Production Speed (Per hour): 220 ~ 600 Times
Electric Consumption of Heating Furnace: 21.6 KW
Electric Consumption of Motor: 3.1 KW
Vacuum Pump (Motor): 3KW / 4HP
Electric Consumption: 27.7 KW
Power Supply: 380VAC 3 Phase / 50 Hz
Machine Dimensions: L6,430mm X W1,710mm X H2,690mm
Weight: Approx.: 2,500 Kg

(*Optional services)
