Products: Cup, Lids, Lunch Boxes, Food Trays etc.

Material: PP, PS, HIPS, PE, PVC, PET

Features:

1. Touch Screen Panel
2. PLC is easily being update
3. Gear Chain
4. Forming & Cutting at the same time
5. Servo-motor pulling film
6. PID temperature control

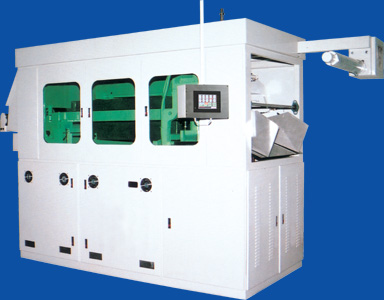

Model No. : TF288

Maximum Forming Area: 560 x 300mm
Maximum Depth of Draw: 120mm
Film Width: 400 ~ 600mm
Tool Clamping Pressure: 12 Tons
Production Speed: 20-60cycles/min
Air Consumption: 12cfm
Electric Consumption: 40kw
Cooling Water Requirement (Approx.): 20 litre/min
Overall Machine Length: 5000mm
Overall Machine Width: 1500mm
Overall Machine Height: 2200mm
Weight (Approx.): 4000Kg
