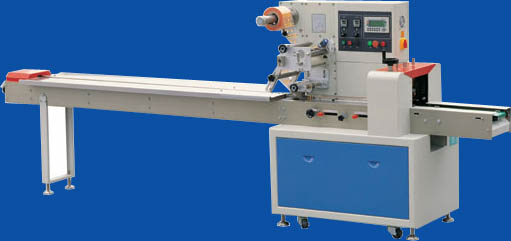

KR250
Continues Horizontal Wrapping Machine
Suitable for packing regular objects such as biscuit, bread, instant noodle, moon cakes, industrial parts, paper box, trays etc.


KR250
movie


Features:

1. Double transducer control, flexible bag length cutting, operator do not need to adjust the unloading working, saving time and saving films.

2. Human-machine operation, convenient and quick parameter setting.

3. Self diagnosis failure function, clear failure display.

4. High sensitivity optical electric color mark tracking, digital input cut position which makes the sealing and cutting more accurate.

5. Separate PID control to temperature, suitable for various packing materials.

6. Stopping the machine in selected position, no sticking to the knife and no waste packing film.

7. Simple driving system, reliable working, convenient maintenance.

8. All the controls are achieved by software, convenient for function adjusting and upgrading.

Model: KR-250B

Film width: Max. 250mm
Bag length: 65 ~ 190mm, 120 ~ 280mm
Bag width: 30 ~ 110mm
Product height: Max. 40mm
Film roll diameter: Max. 320mm
Packing speed: 40 ~ 120¥]/¤À
Power supply: 220V, 50/60Hz, 2.4KW
Machine Dimensions: L3770 ¡Ñ W670¡Ñ H1450
Weight: 800Kg

Model: KR-250D

Film width: Max. 250mm
Bag length: 90 ~ 220mm
Bag width: 30 ~ 110mm
Product height: Max. 55mm
Film roll diameter: Max. 320mm
Packing speed: 40 ~ 120 bags/min
Power supply: 220V, 50/60Hz, 2.4KW
Machine Dimensions: L3770 ¡Ñ W670¡Ñ H1450
Weight: 800Kg

Model: KR-250S

Film width: Max. 180mm
Bag length: 45 ~ 90mm
Bag width: 30 ~ 80mm
Product height: Max. 35mm
Film roll diameter: Max. 320mm
Packing speed: 60 ~ 120 bags/min
Power supply: 220V, 50/60Hz, 2.4KW
Machine Dimensions: L3770 ¡Ñ W670¡Ñ H1450
Weight: 800Kg
