Features:

1. Conduction: Use copper ring design
2. Smooth platform
3. Pressing slingshot design
4. Strong case
5. Stable production

Model No.: W328S (Square Turning Table Type)

Electric Consumption(Direct): 2.25KW
Size of Pressing Board(Direct): L406 x W356mm
Electric Consumption(Impulse): 2KW
Size of Pressing Board(Impulse): L508 x W355mm
Turning Table: L889 x W508mm
Process Height: 165mm
Power Supply: 220V / 50Hz
Air Compressor: 1HP#
Air Pressure: 6 - 7Bars
Machine Dimension: L1140 x W560 x H1425mm
Weight (Approx.): 200Kg
Features: Impulse Heat and Direct Heat

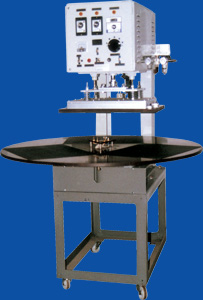

Model No.: W329A (Round Turning Table Type)

Electric Consumption(Direct): 2.25KW
Size of Pressing Board(Direct): L406 X W356mm
Electric Consumption(Impulse): 2KW
Size of Pressing Board(Impulse): L508 X W355mm
Turning Table: Diameter 972mm
Process Height: 165mm
Power Supply: 220V / 50Hz
Air Compressor: 1HP#
Air Pressure: 6 - 7Bars
Machine Dimension: L1170 X W965 X H1425mm
Weight (Approx.): 220Kg
Features: Impulse Heat and Direct Heat

Notes:
1. "#" Not Include Air Compressor
